High Voltage Amplifier AHVAPN1800V20MA Slew Rate 2400V/µs Output ±1800V 20mA Bandwidth 15kHz
|
| |
|
Quantity in Basket:
None
Code: AHVAPN1800V20MA
Price: $1,800.00
|
Volume Price |
|---|
|
Quantity |
Price Each |
|---|
|
1-4 | $1,800.00 |
|
5-8 | $1,780.00 |
|
9-12 | $1,760.00 |
|
13-16 | $1,740.00 |
|
17-20 | $1,720.00 |
|
21-99999 | $1,700.00 |
|
Shipping Weight: 10.00 pounds
Backordered
|
| |
|
The AHVAPN1800V20MA is an electronic module for
amplifying an analog input voltage into a high voltage

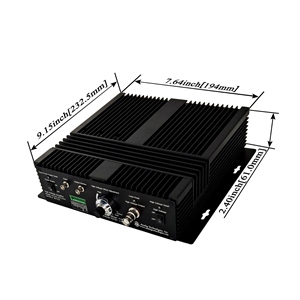

output. Figure 1 shows its photos. It comes with a
high voltage DC-DC converter, which converts the
24V input voltage into two output voltages: −1900V
and +1900V. The analog input voltage, VIN(t), can be
from −10V to +10V, the corresponding output voltage,
HVO(t), is from −1800V to +1800V. There are three
LEDs indicating: 24V power supply is present and
within an appropriate window: 23V to 25V, the high
voltage power supply is outputting ±1900V outputs
properly, and the control loop works properly, i.e.
HVO(t)=180×VIN(t).
|
|
